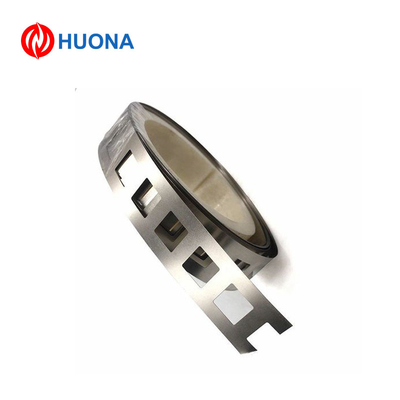

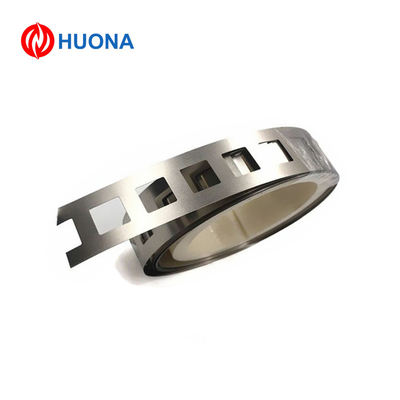

P1 P2 pure nickel strip for battery, nickel strip for new energy battery
| Place of Origin | CHINA |
|---|---|
| 브랜드 이름 | Huona |
| 인증 | ISO9001 |
| Model Number | ni200 ni201 Pure Nickel strip |
| Minimum Order Quantity | 5 |
| 가격 | Bargain |
| Packaging Details | Spool package with Carton box, Coil package with polybag for pure nickel strip |
| Delivery Time | 5-20DAYS |
| Payment Terms | L/C,D/A,D/P,Western Union,MoneyGram |
| Supply Ability | 500 tons per month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Product Name | Pure Nickel Strip | Material | Ni |
|---|---|---|---|
| Certificate | ISO9001,ROHS | Application | Battery Pack, Industry |
| Density | 8.9 G/cm3 | Melting Point | 1455 °C |
| Packaging Details | Spool package with Carton box, Coil package with polybag for pure nickel strip |
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
Product Description
Pure nickel strips, specifically types P1 and P2, are widely used in battery manufacturing, particularly for new energy applications such as lithium-ion battery packs in electric vehicles, energy storage systems, and high-power devices. Key Features of P1 and P2 Pure Nickel Strips.
Material: Typically made from high-purity nickel (99.6% to 99.9% purity, often Ni200 or N6 grade), ensuring low electrical resistance, high conductivity, and excellent corrosion resistance.
Applications: Ideal for spot welding and soldering in battery packs, especially for 18650, 21700, 26650, and 32700 lithium-ion cells. Used in electric vehicles, power tools, renewable energy storage, and DIY battery projects.P1 and P2 Configurations: These refer to nickel strips designed for connecting cells in parallel (P) configurations. For example:
P1: Single-cell connection strip.
P2: Strips for connecting two cells in parallel (e.g., 2P configuration with specific spacing like 20.25mm for 18650 cells).
Dimensions: Common sizes include:
Thickness: 0.1mm, 0.15mm, 0.2mm, or 0.3mm.
Width: 4mm to 27mm, depending on current requirements.
Length: Sold in rolls (e.g., 5m, 10m, or by foot) or pre-cut tabs (e.g., 0.1x8x100mm).
Dimension:
The thickness and dimensions can be met what customers required.
1. Material: pure nickel or nickel steel
2. Width: 2, 3, 4, 5, 6, 7, 8, 10, 15mm or customized width
3. Thickness: hot sale are 0.15mm/0.2mm, or customized thickness
4. Used for 18650, 26650, ,21700,32650, 32700 battery pack
4. Color: silver
5. 18650 nickel strip: 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P
26650 nickel strip: 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P
32650 nicekl strip: 1P, 2P, 3P, 4P, 5P
Physical properties
1.Spot welding is good
2.The resistance is lower
3. Battery discharge time longer
4. The battery spot welding is stronger.
Functions/Applications
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications
| Grade | Chemical Composition(%) | ||||||||
| Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe | |
| N4/201 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6/200 | 99.5 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
Size range
Wire: 0.025 to 8.0 mm.
Strip:0.05-1mm * 5-240mm
The thickness and dimensions can be met what customers required.
Physical properties
1.Spot welding of pure nickel is good
2.The resistance of pure nickel is lower
3. Battery discharge time of pure nickel strip longer
4. The battery spot welding is stronger.
